Enerpac  |  SKU: HCG40010

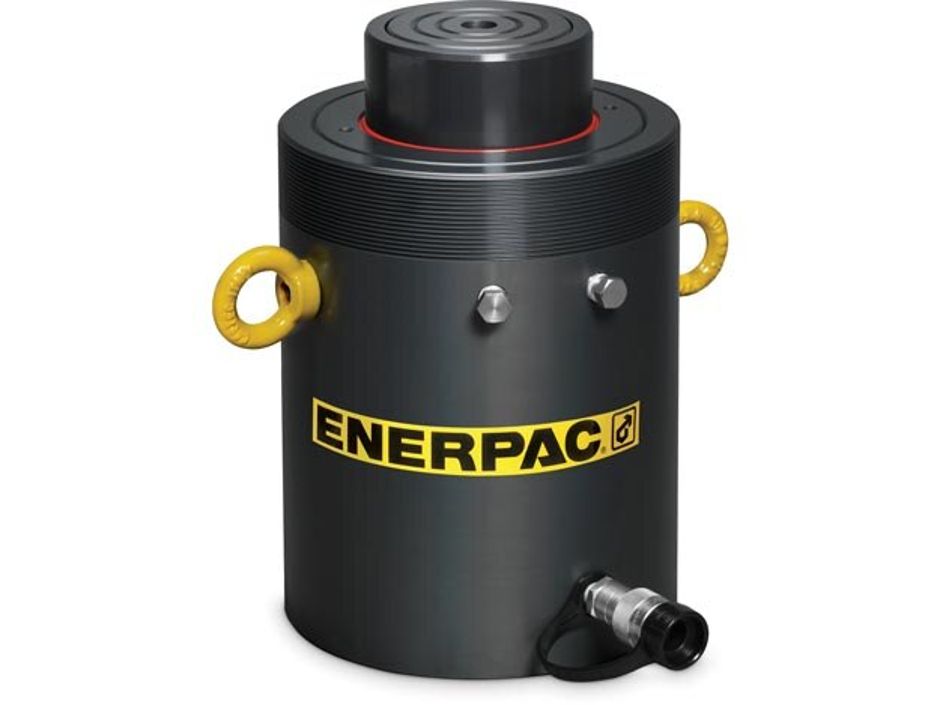

HCG40010, 450 Ton Capacity, 9.84" Stroke, 20.51" Collapsed Height

$16,91040 $21,13800
Shipping calculated at checkout.


Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

HCG Series Hydraulic Cylinders are the single-acting load return option from the industry-proven Enerpac high-tonnage range.

As with all of our high-tonnage cylinders, included are a multitude of special features inside and out, to deliver the increased levels of durability, safety, and performance vital for large-scale construction projects. Among these features are low-wear high pressure seals, replaceable composite plunger support bearings, and a tough nitrocarburized finish on the cylinder body and the plunger.

  • Load return plunger - simple to use and fewer components to maintain
  • Nitrocarburized finish - resists side-loading and cyclic wear
  • 10% resistance to side-load over the full cylinder stroke
  • Stop-ring prevents plunger blow-out
  • Weather protected, inside and out
  • Upper and lower replaceable bearings support the plunger throughout the stroke
  • Certified lifting eyes
  • Base mounting holes
  • Collar threads included on models up to 250 ton. Optional on 300 ton and higher.
  • Maximum working pressure up to 10,000 psi (700 bar)
  • Complies to ASME B30.1

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Enerpac

HCG40010, 450 Ton Capacity, 9.84" Stroke, 20.51" Collapsed Height

$16,91040 $21,13800

HCG Series Hydraulic Cylinders are the single-acting load return option from the industry-proven Enerpac high-tonnage range.

As with all of our high-tonnage cylinders, included are a multitude of special features inside and out, to deliver the increased levels of durability, safety, and performance vital for large-scale construction projects. Among these features are low-wear high pressure seals, replaceable composite plunger support bearings, and a tough nitrocarburized finish on the cylinder body and the plunger.

  • Load return plunger - simple to use and fewer components to maintain
  • Nitrocarburized finish - resists side-loading and cyclic wear
  • 10% resistance to side-load over the full cylinder stroke
  • Stop-ring prevents plunger blow-out
  • Weather protected, inside and out
  • Upper and lower replaceable bearings support the plunger throughout the stroke
  • Certified lifting eyes
  • Base mounting holes
  • Collar threads included on models up to 250 ton. Optional on 300 ton and higher.
  • Maximum working pressure up to 10,000 psi (700 bar)
  • Complies to ASME B30.1

Capacity

  • 400 Ton Capacity Class

STROKE (in)

  • 9.84 in
