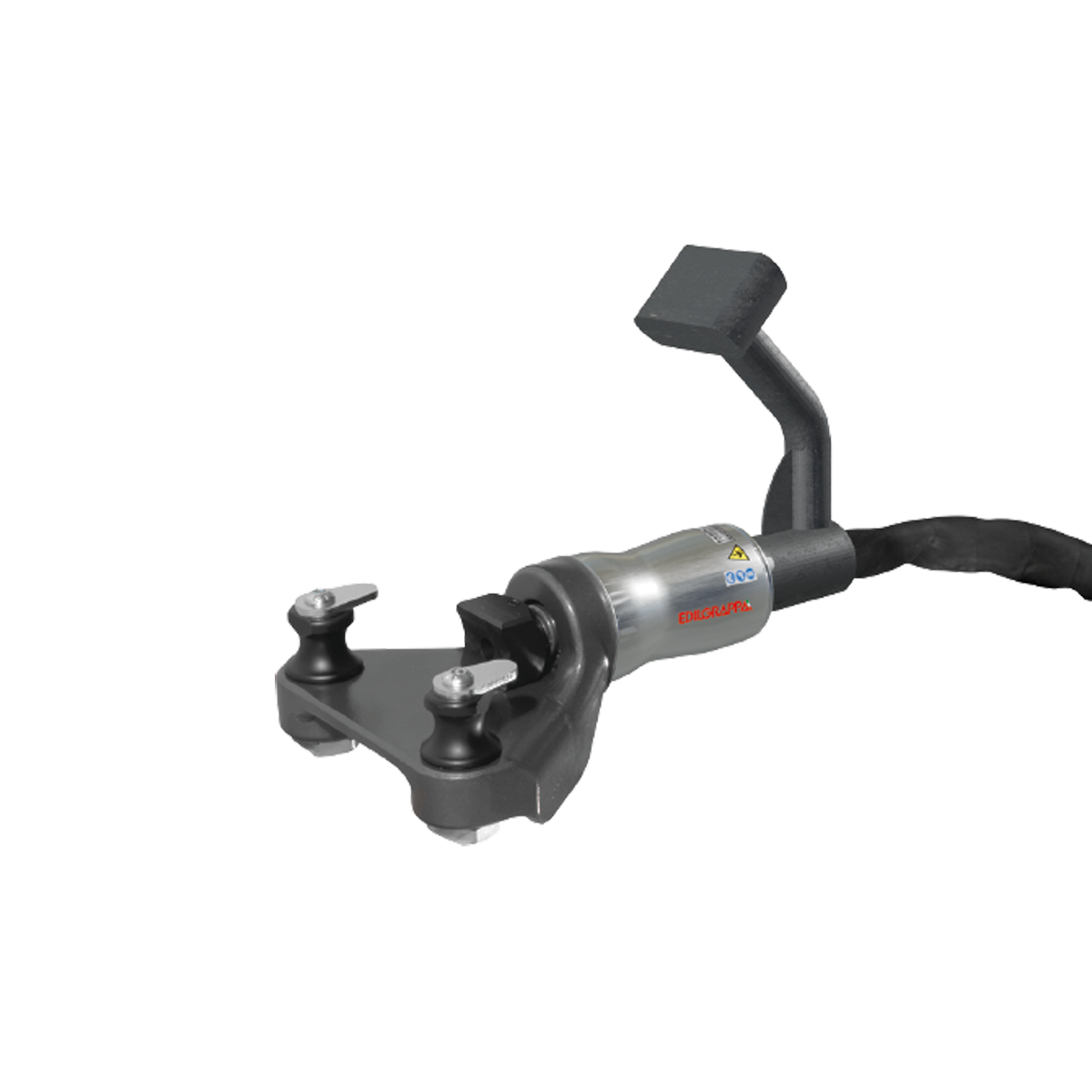

RD8-20 Hydraulic Straightening Machine (Electric Drive)
Couldn't load pickup availability
RD8-20 Hydraulic Straightening Machine (Electric Drive)
The Straightening Machine RD8-20 is an electro-hydraulic tool produced by Edilgrappa, that is ideal for straightening rebars and round bars.
Its small size makes the RD8-20 a very useful Straightening Machine when working in small and complicated spaces, where portable tools are needed.
In building and industrial works, Edilgrappa RD8-20 is frequently used.
The RD8-20 is a Straightening Machine that requires a separate hydraulic-unit. It is provided with a 3 m – 400 bar hose.
Bending capacity ø 8 ÷ 20 mm (Rm: 70 daN/mm²)
Bending force 49 kN (5 t)
Working pressure 40 Mpa (400 bar)
Cylinder Doppio Cylinder
Weight 9.4 kg
Dimensions LxWxH337 x 155 x 230 mm
Adjustable stroke ✓
